Amazon Web Services - IaC Deployment (Recommended)

Chariot provides AWS integrations at both the Organization level and individual account level. Praetorian recommends integrating at the Organization level for the most comprehensive coverage and experience. This guide walks you through deploying the necessary infrastructure as code (IaC) using either Terraform or CloudFormation to establish secure connectivity between your AWS environment and Chariot.



Prerequisites

Before starting the integration, ensure you have:

  • AWS CLI or console access with sufficient permissions to create IAM roles, policies, and Cloudformation stacks
  • Organization management administrator permissions (for Organization-level integration)
  • Account administrator permissions (for individual account integration)
  • If you chose to deploy the IaC using Terraform, ensure access to AWS Cloudshell or an authenticated workstation with Terraform pre-installed



Integration Process

Step 1 - Initiate Integration Setup

  1. Navigate to the Integrations section in your Chariot dashboard
  2. Click "Add Integration" and select "AWS"

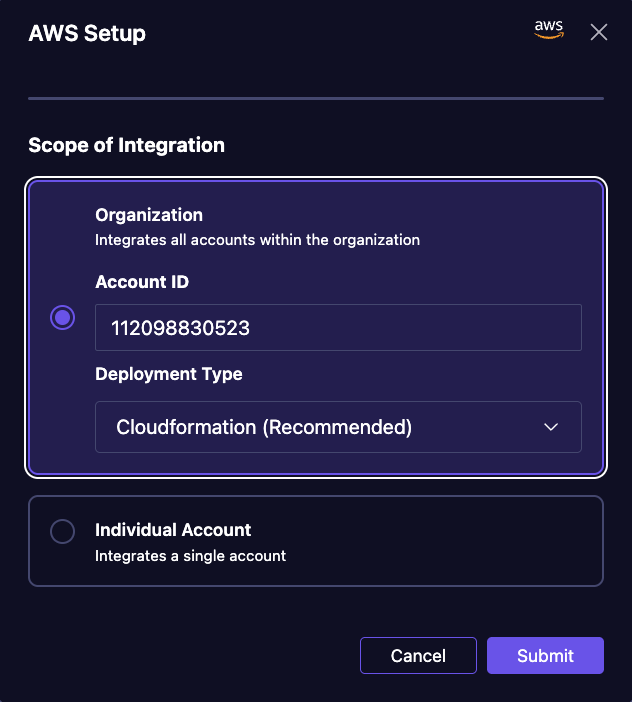

  3. Choose your integration scope and provide the required information



Organization-Level Integration (Recommended)

We recommend you integrate at the Organization level for more comprehensive and accurate coverage of security weaknesses across your environment. For Organization-level integration, you'll need to provide:

  • Account ID: Your AWS management account ID (12-digit number)
  • Deployment Type: Choose from CloudFormation (recommended) or Terraform



Individual Account Integration

Ideally, individual account integrations are meant for accounts not part of an Organization. For individual account integration, you'll need to provide:

  • Account ID: The specific AWS account ID you want to integrate
  • Deployment Type: Choose from CloudFormation (recommended) or Terraform

Once provided, click Submit to move to the next step.



Step 2 - Download Integration Template

After providing your account information, Chariot will generate the appropriate deployment template.

  • Click "Download IAC Template" to download the deployment files
  • The template contains all necessary IAM roles and policies pre-configured with your unique external ID

NOTE: Your integration information is cached while your browser tab is open. You can close the integration modal using the X icon and return later to continue the integration process once the IaC deployment is complete. This cache is maintained only as long as you keep the browser tab open. If you close the tab, a new dynamic template will be generated.

You can only proceed to the next step once you've downloaded the template. Make sure to deploy your template successfully before proceeding to the next step.



Step 3 - Deploy the Template

Please see details based on your selected option (deployment type of Cloudformation or Terraform).



CloudFormation Deployment (Recommended)

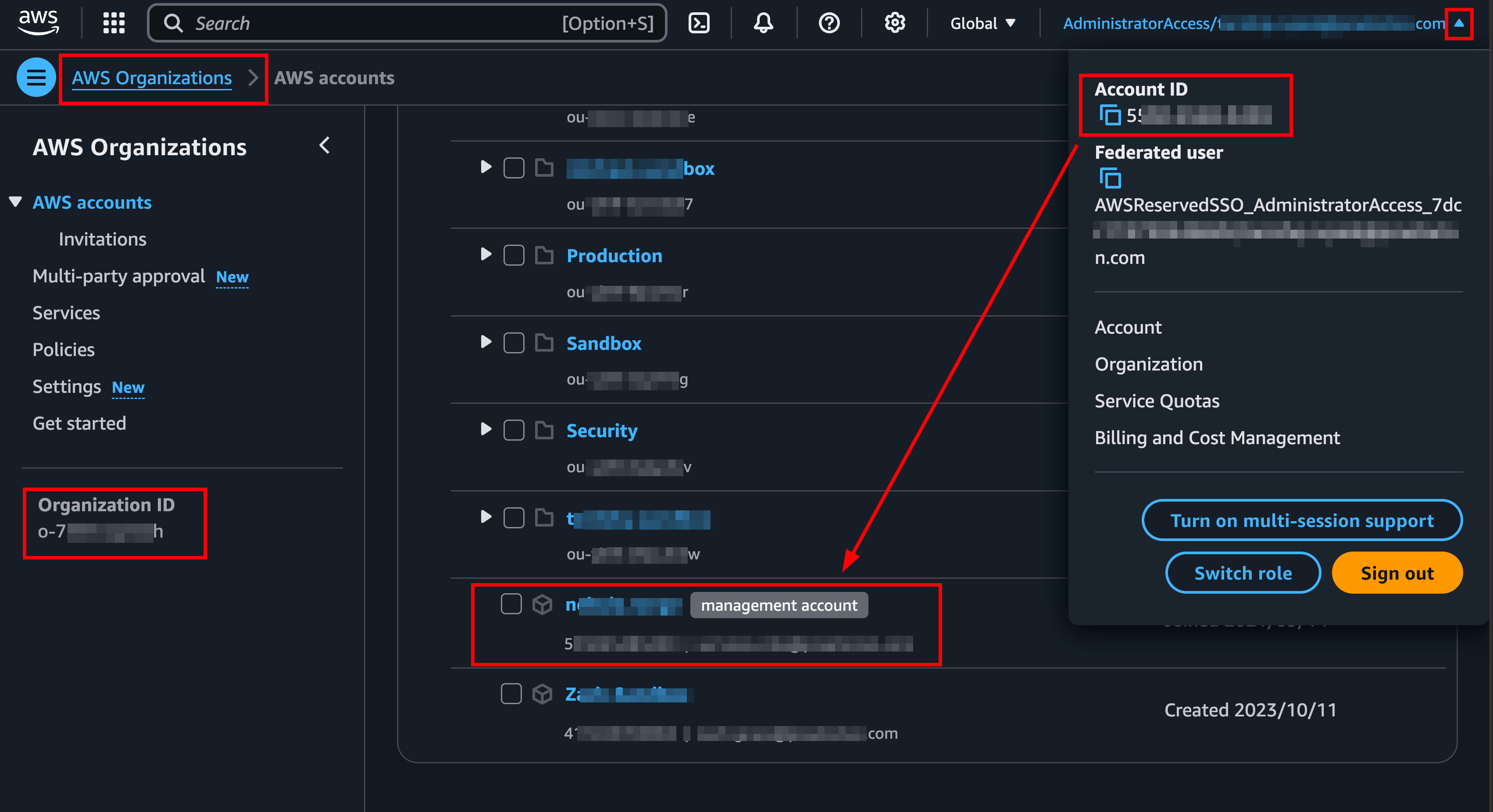

  1. Sign in to your AWS Management Console (please confirm it’s your Organization management account; you can do so by visiting the AWS Organizations console and ensuring the management account ID matches the ID shown on the top right of the UI. See the screenshot below)
  2. Navigate to AWS Organizations and take note of your Organization's root OU ID (this is different from your Organization ID. See the screenshot below)
  3. Navigate to the CloudFormation service

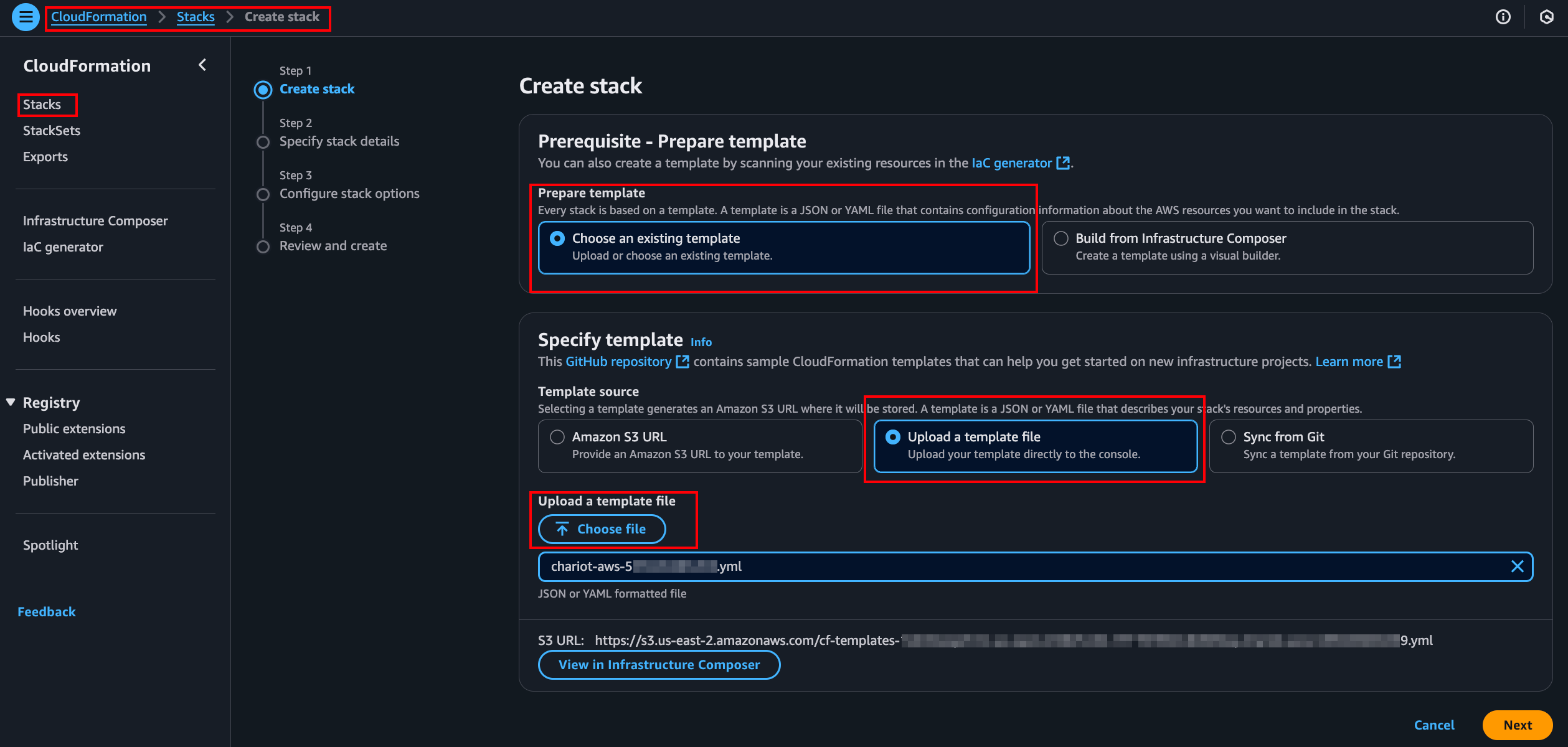

  4. Click "Create stack" → "With new resources (standard)"
  5. Upload the CloudFormation template downloaded in the previous step

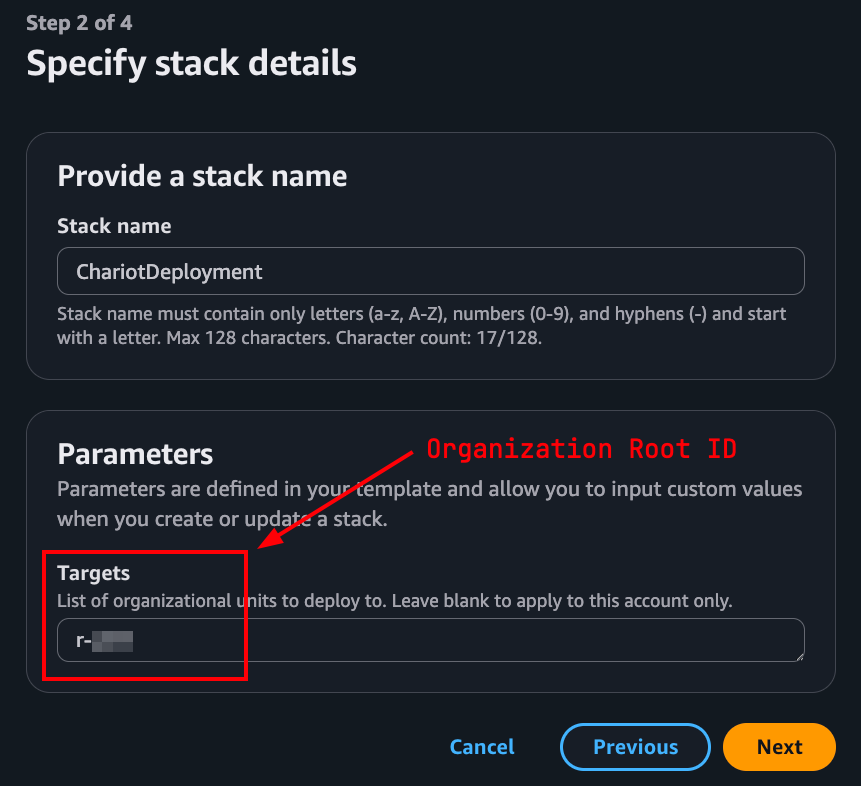

  6. Provide stack parameters:
    • Targets: For Organization-level deployment, specify Organization ID (format: r-xxxx).
    • You can also specify a specific Organizational Unit ID (format: ou-xxxx-xxxxxxxx); however, we strongly recommend an Organization-wide deployment to account for comprehensive coverage of global controls such as service control policies (SCPs) and resource control policies (RCPs)
    • Leave the target empty if you’re performing a single AWS account integration
  7. Follow the instructions, review, and create the stack
  8. Wait for stack creation to complete (status: CREATE_COMPLETE), and proceed to the next step only with a successful deployment

For Organization-Level Deployment: The template creates a StackSet that automatically deploys the Chariot role across all accounts in your specified Organization (or OU IDs). New accounts added under the targets will automatically receive the role.

For Individual Account Deployment: The template creates a single IAM role in the specified account.



Terraform Deployment

The preferred integration method is through the Cloudformation. If you have already completed the integration by following the directions for Cloudformation integration above, you do not need to continue with the Terraform instructions.

You can deploy Terraform via CLI on a workstation or through AWS Cloudshell. Please ensure you’re logged into the session for the Organization management account for Organization-level integrations.

  1. Populate your working directory (or upload to Cloudshell) with the Terraform file downloaded in the previous step
  2. Initialize Terraform and review the planned changes:
terraform init
terraform plan
  1. For Organization-level deployment, set the targets variable with the appropriate Organization Root ID:
terraform plan -var='targets=["r-xxxx"]'
  1. Apply the configuration:
terraform apply

NOTE: It is a good idea to maintain the Terraform state resulting from the deployment. However, keep in mind that the Terraform module deploys a StackSet similar to the Cloudformation method. This is the most efficient way to deploy roles across an AWS Organization.



Step 4 - Complete Integration

  1. After deploying the template, return to the Chariot integration modal
  2. Click "Finish" to complete the integration

When you do this, Chariot will automatically:

  • Validate the integration by attempting to assume the deployed role
  • Verify validity of access to your AWS environment
  • Add the integration to your integrations list upon successful validation



Get Support

Congratulations! Your AWS environment is now integrated with Chariot and ready for security monitoring. If you encounter any issues during the integration process or need assistance with configuration, our support team is here to help. Please don't hesitate to reach out to support@praetorian.com for personalized assistance with your Chariot deployment.
